Dental Lab Equipment 5 Axis Wet Milling Tshuab



Dental Lab Equipment 5 Axis Wet Milling Tshuab yog tsim thiab tsim los ntawm Zotion. Nws muaj cov yam ntxwv ntawm kev ua haujlwm siab thiab kev ua haujlwm siab. Nws yog qhov tsim nyog rau cov chaw kuaj hniav thiab yog cov khoom siv kho hniav nyiaj txiag.



Yam khoom twg tuaj yeem zeb	Cov iav ceramics, Titanium premill abutment, PMMA
XYZ max khiav ceev	Z axis 60000mm / min XY axis 6000mm / min
Spindle ceev	6000-60000 RPM
Rotary axis stroke	A axis: 360℃Baxis: 土 25℃_-135 degree
Cov cuab yeej magazine hom	Professional tsis siv neeg cov cuab yeej magazine
Tool kom muaj nuj nqis	12 cov cuab yeej
Tool Size	Shank txoj kab uas hla 4mm * 45mm tag nrho ntev
Tswj code	NC code
Program interface	USB 2.0,100M network chaw nres nkoj
Hwj chim	AC 220V 10%, 50/60 Hz
Spindle zog:	850w
Ua haujlwm nrov	<45 decibel in standby,<70 decibel when running. The data is tested by UT353.It exists tolerance when milling different material
Net nyhav	50kg ua
Loj	W * L * H 420mm * 540mm * 580mm





Qhov zoo ntawm Dental Lab Equipment 5 Axis Wet Milling Tshuab:



1.50KG - me & compact

2. A axis ± 360 degree, B axis kaum +25℃-135℃- xyuas kom yuav luag tsis muaj undercut cheeb tsam hauv milling

3. Milling bur lifetime qhia - yooj yim kom paub tias ntev npaum li cas cov burs siv tau

4. Fais fab tuag lub cim xeeb muaj nuj nqi - txuas ntxiv zeb los ntawm qhov chaw nres los ntawm lub zog tam sim ntawd, txuag sijhawm

5. Milling lub sij hawm qhia - yooj yim kom paub ntau npaum li cas timm xav tau rau cov ntaub ntawv STL tam sim no

6. Ib nias calibration - yooj yim rau calibrate, tsis xav tau zeb square li qub, txuag lub sij hawm.

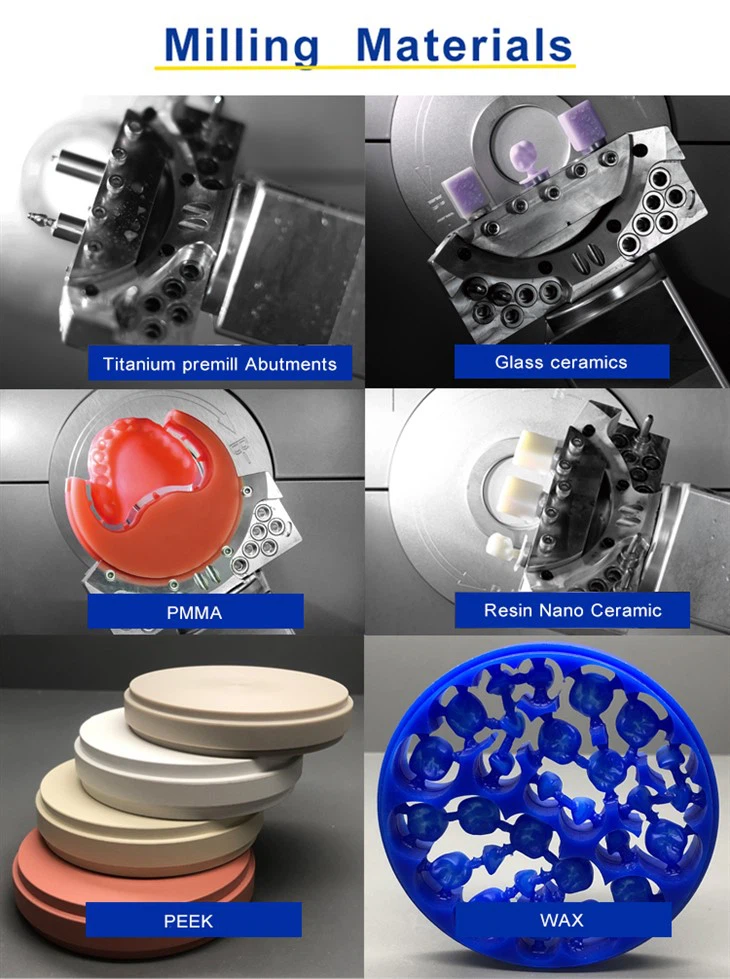

Dental Lab Equipment 5 Axis Wet Milling Tshuab tuaj yeem zeb cov ntaub ntawv hauv qab no:

1.Glass ceramic (Lithium disilicate) thaiv

2.Pre-milled abutment

3. PMMA disc

4.Resin thaiv

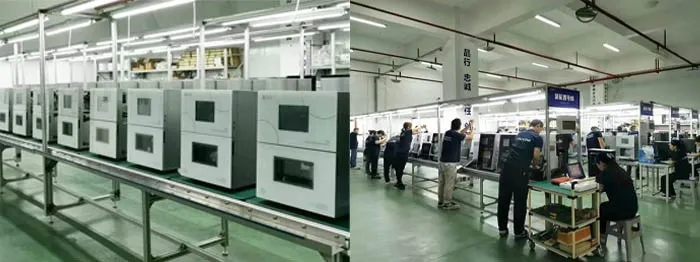

Zotion hauv xyoo 2009 yog thawj cov chaw tsim khoom tsim thiab tsim cov hniav zirconia discs thiab milling tshuab, peb cov khoom tau raug muag rau ntau tshaj 120 lub teb chaws thiab cheeb tsam, kuj muag technologies rau ntau factories nyob rau hauv Tuam Tshoj, peb tam sim no tsim cov ntaub ntawv kho hniav (zirconia / PMMA / wax / PEEK), thiab kho hniav equipments (milling furaces, sintersing machines). Tag nrho peb cov khoom tau txais daim ntawv pov thawj CE thiab ISO nrog kev tswj xyuas zoo thiab kev ua haujlwm zoo, muaj npe nrov hauv Suav teb thiab txawv teb chaws nrog lub koob npe nrov hauv peb cov neeg siv khoom.













Peb qhov kev pabcuam:

1.Instant teb: Pab neeg muag khoom ib txwm nyob online rau 24 teev npaj rau cov neeg siv khoom muaj lus nug.

2.Strict Quality Control: txhua lub tshuab yuav raug kuaj thiab kuaj ntau tshaj 100 teev ua ntej xa khoom.

3.Professional kev muag khoom: Tag nrho cov muag khoom nyob rau hauv lub lag luam no tshaj 5 xyoo yam tsawg kawg nkaus, nrog tag nrho cov kev paub ntawm tag nrho peb cov khoom

4.Zoo tom qab- kev muag khoom: Peb muab kev tshaj lij kev teeb tsa thiab kev saib xyuas video qhia, txhawb kev pab cuam tej thaj chaw deb rau software teeb meem thiab hauv online video hu tom qab kev pabcuam.



FAQ:

Q1. Koj puas yog ib lub tuam txhab tsim khoom?

A: Peb yog qhov zoo tshaj plaws tsim thiab tsim Hoobkas hauv Suav teb rau kev kho hniav milling tshuab hauv Suav teb tshaj 14 xyoo
Q2. Koj lub sijhawm xa khoom ntev npaum li cas? Yog tias kuv xav kho cov khoom, nws siv sijhawm ntev npaum li cas?
1. Lub sij hawm tsim khoom 5-7 hnub yog tias muaj cov khoom npaj txhij, 7-10 hnub yog tias tsis muaj cov khoom npaj txhij, lub sijhawm xa khoom yog nyob ntawm txoj kev koj xaiv rau shipping
2. Peb txais OEM kev pabcuam rau peb cov neeg siv khoom. Lub sij hawm tsim khoom xav tau 15-30 hnub raws li OEM.
Q3.Kuv tuaj yeem xaj li cas?

Cov kauj ruam: Nug cov lus hais rau cov khoom - paub meej cov ntsiab lus ntawm kev them nyiaj - ua proforma invoice - npaj them rau peb - ​​npaj ntau lawm & shipping

Q4. Koj lub tuam txhab cov khoom lag luam zoo li cas tom qab - kev muag khoom?
Lub tshuab warranty yog 1 xyoo, peb yuav muab cov khoom dawb yog tias muaj teeb meem thaum lub sijhawm lav. Tsis tas li peb tuaj yeem muab cov lus qhia txog kev tu lub neej.

Yog tias muaj lus nug / teeb meem thaum siv, peb yuav thaij video los qhia koj ncaj qha yuav daws nws li cas.
Q5. Peb lub teb chaws lub hwj chim mov thiab plug yog txawv. Koj daws nws li cas?
Peb lub tshuab feem ntau qhia 220V rau lub zog ruaj khov thaum lub sijhawm milling, yog tias xav tau transformer kuj tuaj yeem muab tau. Qhov hluav taws xob tuaj yeem muab tau raws li koj lub tebchaws thov.
Q6. Yuav them li cas?
Peb tsuas yog txais T / T Bank hloov pauv (USD / Euro / RMB), Alibaba (Master card / Visa / paypal ...), Western Union
q7 ua. Lub pob khoom zoo li cas? Txoj kev xa khoom?
1. Cov thawv ntoo uas muaj kev tiv thaiv puv ntoob sab hauv

2. Txais tau los ntawm huab cua / hiav txwv / courier tuam txhab, koj tuaj yeem tuaj tos yog tias muaj tus neeg sawv cev xa khoom hauv Suav teb.
