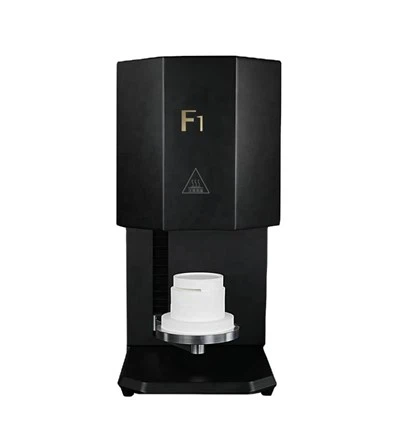

Kev kho hniav sintering rauv ceev qeeb zirconia sintering rauv
Kev kho hniav sintering rauv ceev ceev qeeb zirconia sintering rauv muaj ob lub plhaub qauv nrog zoo heev rwb thaiv tsev. Cov qauv tsim tshwj xeeb kom ntseeg tau tias lub cub tawg tuaj yeem ua tiav cov txheej txheem cua sov thiab cua txias, muab qhov chaw ua haujlwm huv si thaum lub sij hawm sintering txheej txheem. Dab tsi ntxiv, Ntau hom lus rau kev xaiv. Qhov loj loj tso cai rau lub cub tawg rau sinter 3 crucibles (MAX.90 crowns) ntawm ib lub sij hawm, ua rau nws xaiv zoo rau cov chaw kho hniav thiab chaw kho mob. Nws yog txawm peem rau nrog ib tug kov screen tswj system rau kev ua hauj lwm yooj yim dua. Tsis tsuas yog tuaj yeem sinter zirconia tab sis kuj tuaj yeem sinter iav ceramics thiab glazing. Nws suav nrog 20 sintering cov kev pabcuam, tus neeg siv tuaj yeem hloov kho nws, yog li nws yog tus phooj ywg zoo, Dab tsi ntxiv, cov qauv tsim tshwj xeeb ntawm lub cub tawg tso cai rau cua sov ceev thiab ceev txias, Nws yog nrov heev hauv kev lag luam hniav .Nws txhawb ceev sintering thiab qeeb sintering ob qho tib si.
- Khoom Taw qhia
Khoom Description
Cov khoom parameter
Khoom Paub meej
Cov khoom zoo
Ceramic sintering rauv ceev ceev qeeb zirconia sintering rauv muaj ntau yam zoo:
1. Peb-Txheej Sintering Disc Tsim: Muaj peev xwm ntau dua, ua haujlwm tau zoo dua, thiab txuag sijhawm
Tsim los nrog cov qauv ua kom sov, lub kaw lus nta peb tshem tau siab -kub sintering tais ua los ntawm alumina ceramic. Qhov sib nrug ntawm cov tais (Ntau dua lossis sib npaug li 30 mm) tau raug suav ua tiav kom ntseeg tau tias qhov kub thiab txias tsis sib xws ntawm cov khaubncaws sab nraud povtseg sab saud thiab qis (qhov kub sib txawv tsawg dua lossis sib npaug li 3℃ntawm txhua qhov chaw). Lub qhov cub hluav taws xob sab hauv yog qhov ua kom zoo tshaj plaws kom siv tau qhov chaw zoo tshaj plaws, ua rau ib qho -batch muaj peev xwm mus rau 60–90 chav kho hniav (ib lub kaus mom) yam tsis muaj qhov loj ntawm lub tshuab loj- sawv cev nce 50% piv nrog cov qauv ob- txheej txheem.
Qhov zoo:
① Kev txuag lub sij hawm tseem ceeb: Ib pawg tuaj yeem ua 60-90 units. Rau cov chaw kho mob xav tau 30–60 ib lub kaus mom ib hnub, ib pawg yog txaus- tshem tawm kev hloov pauv ntau zaus. Ib lub voj voog batch npog feem ntau cov kev xav tau sintering txhua hnub thiab txo cov neeg siv sijhawm tos.
② Kev xa tawm ntau dua txhua hnub: Raws li 8 teev ua haujlwm thiab 60-feeb voj voog, mus txog 8 pawg tuaj yeem ua tiav hauv ib hnub, nrog lub peev xwm siab tshaj plaws ntawm 720 units, ua tau raws li qhov ntau ntawm - cov kev xav tau ntawm cov chaw tsim khoom me me rau nruab nrab.
③ Kev siv qhov chaw siab: Peb - txheej txheej txheej ob lub peev xwm tsis tau nce lub tshuab hneev taw. Chav tsev tuaj yeem muab tso ncaj qha rau ntawm tus qauv ua haujlwm, zoo tagnrho rau cov chaw kho mob uas muaj qhov chaw tsawg.
2. 100℃/ min Kub Rate: Fast Sintering nrog Exceptional nqi Performance
Nrog siab -cov cua kub ua haujlwm tau zoo thiab qhov ua kom zoo tshaj plaws thermal cycling system, lub qhov cub siv PID kub- tswj cov txheej txheem los tswj cov cua sov kom meej, ua tiav qhov kub siab tshaj plaws ntawm 100℃/ min. Rau tus qauv 3Y zirconia (qhov kub siab tshaj 1500 degree), cua sov-tuav-txias nkhaus yog optimized kom tiav tag nrho lub voj voog nyob rau hauv 60 feeb. Ua tib zoo xaiv cov khoom sib npaug ntawm kev ua haujlwm thiab cov nqi tsim khoom, muab kev ua haujlwm zoo ntawm tus nqi pheej yig.
Qhov zoo:
① Kev ua tau zoo ntawm cov qauv hauv tib tus nqi ntau: 60-feeb puv sintering lub voj voog ua kom lub sijhawm ua haujlwm luv luv los ntawm 33% -50% piv nrog cov qauv kev lag luam ib txwm muaj (90-120 feeb), ua rau "sab sawv ntxov milling, tav su xa."
② Tus nqi zoo heev-kev ua tau zoo piv: Ntawm 30%–50% tus nqi qis dua siab- kawg nrawm- sintering rauv, nws muab ze li qhov sib piv ceev- txo cov cuab yeej peev txheej thaiv rau cov chaw kho mob me.
③ Tswj lub zog noj: tag nrho lub zog siv ib lub voj voog yog li 3 kWh. Nrog 60 units ib batch, kev siv hluav taws xob hauv ib chav tsuas yog 0.05 kWh, kwv yees li 20% qis dua li cov qauv qis dua - muaj peev xwm.
3. Ntau- Cov Khoom Siv Tau Zoo (Zirconia, Iav Ceramics, Glaze): Ib Lub Tshuab rau ntau daim ntawv thov
Lub cub tawg chamber siv cov corrosion-resistant, siab-kub alumina ceramic sab hauv ob sab phlu. Lub tshuab cua sov txhawb nqa dav dav ntawm 800℃txog 1600 degree, haum rau zirconia (1450-1600 degree), iav ceramics (850-950 degree), thiab glazing (900-1050 degree). Cov software suav nrog cov kev pabcuam sintering uas haum rau txhua yam khoom siv, preset nrog cov cua sov tsim nyog thiab tuav lub sijhawm raws li thermal expansion thiab sintering yam ntxwv - tiv thaiv kev puas tsuaj los ntawm qhov tsis raug.
Qhov zoo:
① Kev pabcuam dav dav: Ib lub tshuab npog zirconia crowns thiab txuas hniav, iav -ceramic veneers, thiab glaze firing- tso cai rau cov chaw kho mob los daws cov teeb meem kev kho mob sib txawv yam tsis tau yuav cov khoom siv hluav taws xob ntxiv.
② Kev siv cov cuab yeej siv siab dua: Zam tsis txhob ua haujlwm ib leeg- cov khoom siv ua haujlwm thiab ua rau ROI nce ntxiv, tshwj xeeb tshaj yog rau cov chaw kho mob tshiab nrog cov khoom ua haujlwm hloov pauv.
③ Kev ua haujlwm qis dua: Cov kev pabcuam preset tshem tawm qhov xav tau ntawm phau ntawv hloov pauv. Cov neeg ua haujlwm tsuas yog xaiv cov khoom siv sib txuas kom pib sintering.
4. Ntau-Stage Customizable Heating Curves (2/3/4 Stages): Precise Adaptation with User-Kev Tswj Tus Kheej
Nruab nrog rau tom ntej no - tiam siab - txhais touchscreen, lub kaw lus suav nrog ntau- theem programming module txhawb nqa 2–4 cov txheej txheem cua sov (kho tau cua sov tus nqi, lub hom phiaj kub, thiab tuav lub sijhawm rau txhua theem). Lub interface siv cov txheej txheem kev teeb tsa, pab cov neeg siv ua tiav qhov kev teeb tsa cov kauj ruam -los ntawm - kauj ruam. Nws kuj tseem txhawb kev txuag thiab rov qab txog li 15 qhov kev pab cuam kev cai, nrog rau qhov tseeb -lub sij hawm nkhaus zaub kom pom tseeb ntawm qhov kub thiab txias.
Qhov zoo:
① Kev ua haujlwm yooj yim: Cov kev taw qhia interface txo cov programming nyuaj. Txawm tias cov kws tshaj lij tshiab tuaj yeem ua tiav cov kev cai teeb tsa yam tsis muaj kev cob qhia kev tshaj lij- txhawb nqa kev ua haujlwm tau zoo los ntawm 60% piv nrog cov kev sib tshuam ib txwm ua.
② Kev tswj cov txheej txheem ntau dua: Ntau- theem teeb tsa kom haum raws li cov khoom siv tshwj xeeb (xws li, iav ceramics xav tau "preheat-ceev kub-up-short tuav" peb-theem cycles), tiv thaiv cov teeb meem xws li tsis txaus los yog tawg thiab txhim kho kev kho kom zoo.
③ Txhim kho kev tswj hwm: Tiag - lub sijhawm nkhaus zaub muab kev pom tam sim rau cov txheej txheem sintering. Cov neeg ua haujlwm tuaj yeem kho qhov tsis zoo raws li qhov xav tau, thiab cov kev pabcuam khaws cia ua kom cov khoom sib xws thaum txo cov nqi seem los ntawm tib neeg yuam kev.
Hoobkas
Npog cheeb tsam
xyoo kev
Exported Lub teb chaws
Kev Pabcuam Cov Neeg Siv Khoom
Chongqing ZOTION Dentistry Tehcnology Co., Ltd yog lub chaw tsim khoom tshaj 15 xyoo dhau los hauv kev lag luam no.
Peb tag nrho muaj ob lub tsev khaws khoom, Online tshawb xyuas txhua yam muaj rau peb.
Peb Ntau Lawm ib txwm muaj puv. Ua los ntawm Peb cov neeg siv khoom xaj.
Cov khoom pov thawj
cov neeg siv khoom tawm tswv yim
Cov khoom exhibition
Packing & Shipping
Ntim:
Txhua lub thawv yog cim nrog cov cim tiv thaiv -inversion rau sab nraud kom muaj kev nyab xeeb ntawm kev thauj mus los.
Shipping:
Peb tuaj yeem xa cov khoom rau koj los ntawm International Express xws li DHL, UPS, TNT, EMS thiab lwm yam, koj tuaj yeem xaiv qhov tsim nyog raws li koj lub sijhawm thiab nyiaj txiag. Tsis tas li ntawd, koj tuaj yeem xaiv siv koj tus kheej tus neeg saib xyuas shipping.
Los ntawm kev nthuav qhia: Qhov rooj rau qhov rooj, yooj yim heev
Los ntawm Cua / Los Ntawm Hiav Txwv: Tshav dav hlau mus rau tshav dav hlau los yog chaw nres nkoj mus rau seaport, koj yuav tsum tau ua qhov kev lis kev cai clearance thiab tuaj tos cov khoom ntawm koj lub tshav dav hlau hauv zos los yog seaport.Koj tuaj yeem muaj tus neeg sawv cev hauv zos ua rau koj.
