zirconia Fast hniav Sintering Rauv Rau Dental Lab





Zotion cov khoom tshiab F2 ceev sintering rauv yog qhov kev xaiv zoo rau koj qhov chaw kuaj hniav. Piv nrog F1, nws yog kev lag luam ntau dua. Thiab nws tuaj yeem sinter zirconia discs, iav ceramic. Thiab nws tuaj yeem ua zirconia glazing.





Rated Voltage
220V AC ± 20%
Kev tsim hluav taws xob dav dav, sib xws nrog lub tshuab hluav taws xob thoob ntiaj teb thiab ua siab ntev rau kev hloov pauv hluav taws xob.

Rated zog
2500W
Kev siv hluav taws xob muaj txiaj ntsig zoo, ntsuas qhov ntsuas kub ceev nrawm nrog kev siv zog ua kom zoo.

Qhov kub siab tshaj plaws
1650 degree
Haum rau tag nrho sintering ntawm 3Y, 4Y, thiab 5Y zirconia, nrog rau cov ntaub ntawv iav ceramic, nrog rau siab -translucency zirconia.

Cua sov tus nqi
100℃/ min
Txhawb ob qho tib si ceev thiab qauv hom. Fast hom enables tib yam -hnub lub rooj zaum restorations.

Kub qhov tseeb
± 1 degree
High -tus qauv kev lag luam kawg, ua kom muaj zog zoo ib yam, translucency, thiab xim sib xws ntawm kev kho dua tshiab.

Cov tsos thiab qhov hnyav
Nyiaj -grey tiav, 420 × 320 × 600 mm, net hnyav 38 kg
Compact desktop tsim, tsis muaj cov cuab yeej tshwj xeeb hauv chav yuav tsum tau -zoo tagnrho rau cov chaw kho mob hauv tsev kho mob thiab cov chaw sim me me.







Qhov zoo ntawm zirconia Fast hniav Sintering rauv rau Dental Lab



1. Loj-muaj peev xwm sintering chamber: tuaj yeem tuav 3 txheej ntawm cov tais thiab sinter 80-100 hniav
Qhov chaw sab hauv ntawm lub qhov cub sintering tau txais peb - qhov txheej txheem txheej txheem tsim, uas tuaj yeem tuav peb txheej txheej txheem sintering tais tib lub sijhawm.
Txhua txheej tuaj yeem tuav txog 30-35 cov hniav (xws li ib lub kaus mom lossis txuas hniav), thiab tag nrho lub peev xwm ncav cuag 80-100 units, txhim kho kev ua haujlwm ntawm ib qho kev ua haujlwm zoo heev.
Txawm tias thaum thauj khoom tag nrho, nws tuaj yeem ua kom qhov kub tsis sib xws thiab zam qhov teeb meem ntawm cov xim tsis sib xws lossis qhov ntom ntom ntawm cov hniav sab saud thiab qis dua.

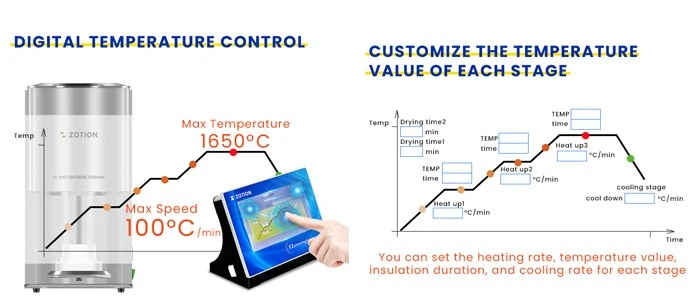

2. Qhov siab tshaj plaws cua sov tuaj yeem ncav cuag 100℃/ feeb, paub qhov ceev thiab qeeb hlawv hom
Tus nqi cua sov yog hloov tau thiab hloov tau yooj yim, thiab nws tuaj yeem hloov tau yooj yim los ntawm qeeb sintering (tsim rau siab -pob tshab, ntau- txheej gradient cov ntaub ntawv) kom ceev sintering (tsim rau kev kho txhua hnub ntawm ib leeg).
Txoj kev nrawm nrawm -kev tua hluav taws tuaj yeem ua rau lub sijhawm sintering ntawm qee cov khoom kom nyob rau hauv 30-60 feeb, txhim kho kev ua haujlwm zoo ntawm kev xa khoom ib hnub, thiab tsim nyog rau "kev kho tam sim" lossis "Chairside CAD/CAM" cov txheej txheem.
Lub qeeb - tua hom yog haum rau siab - yuav tsum tau ceramic blocks (xws li multi- txheej aesthetic ceramics). Los ntawm kev tswj qhov kub thiab txias kho qhov ua haujlwm, cov neeg siv tuaj yeem kho cov cua sov, qhov kub thiab txias kom tsis txhob tawg thiab tawg.
3. Siv siab -purity silicon-molybdenum pas nrig cua sov ntsiab kom sai, ruaj khov thiab ntau dua
Cov khoom cua sov siv siab -purity Si-Mo silicon- molybdenum rods, uas muaj oxidation zoo heev thiab siab - kub durability.
High thermal conductivity thiab thermal teb sai txhim kho sintering efficiency thaum tuav ntev - lub sij hawm ruaj khov tso zis.
Piv nrog rau cov cua kub zoo tib yam, tsis muaj impurity tso tawm thiab tsis muaj kuab paug rau ceramic blocks. Nws yog tshwj xeeb tshaj yog haum rau sintering ntawm cov ntaub ntawv kho hniav uas yuav tsum tau ib tug siab huv ib puag ncig (xws li imported zirconia thiab multi- txheej iav ceramics).
Cov khoom muaj lub neej ntev, txo qhov zaus ntawm kev hloov, thiab txo qis tom qab -muag thiab tu nqi.
4. Qhov loj me, sib zog, yooj yim rau nruab thiab txav mus los
Lub compact rwb thaiv tsev system thiab lub teeb yuag stainless hlau plhaub tsim ntawm nws tus kheej tsim los ntawm Zotion ua rau tag nrho cov khoom sib zog thiab hloov tau yooj yim.
Piv nrog rau cov tsoos sintering furnaces, F2 rauv yog hais txog 15-25% me me, ua rau nws yooj yim rau tso rau hauv cov chaw kho hniav, cov chaw kuaj me me los yog cov rooj kuaj tsis tau noj qhov chaw.
Yooj yim rau nruab, ntsaws thiab ua si, haum rau kev xa tawm, chaw kho mob mobile lossis chaw kho mob sintering thiab lwm yam xwm txheej.
Cov nqi tsheb thauj mus los qis dua, tshwj xeeb tshaj yog rau kev xa khoom thoob ntiaj teb lossis kev xa tawm txawv teb chaws.
5. Ultra- kub precision tswj ± 1 degree, siab tshaj plaws kub 1650 degree

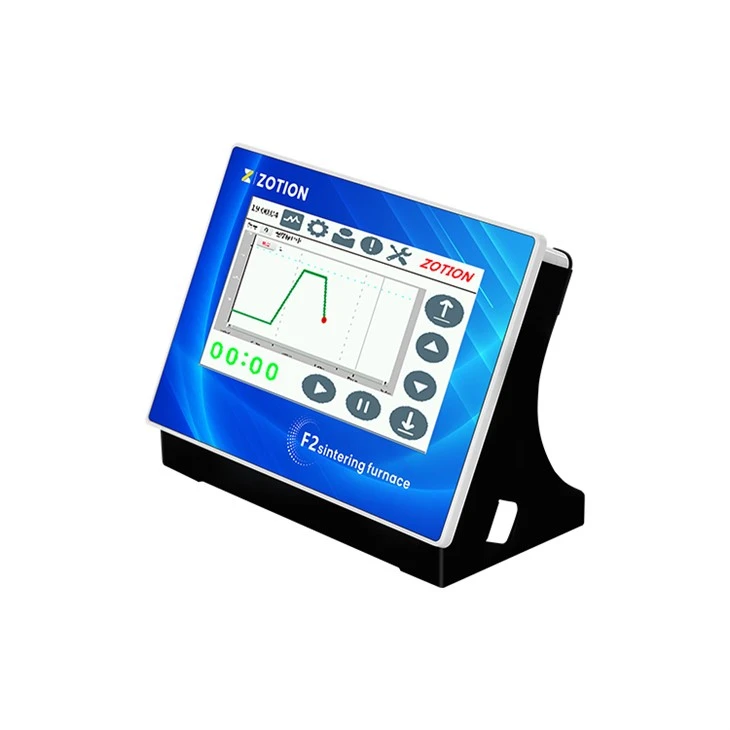

Kev tswj qhov kub thiab txias tuaj yeem ncav cuag ± 1 degree, uas yog ua tiav los ntawm microcomputer PID ntse tswj qhov ntsuas kub, uas tuaj yeem xyuas kom meej tias qhov kub ntawm tag nrho lub cub tawg yog qhov sib xws.
Thaum sintering multi-unit crowns, nws muaj peev xwm xyuas kom meej tias qhov ceev, xim thiab lub teeb transmittance ntawm txawv qhov chaw yog zoo ib yam, zam qhov teeb meem ntawm "sib txawv xim nyob rau hauv tib lub cub tawg".
Qhov siab tshaj plaws sintering tuaj yeem ncav cuag 1650 degree, uas ua tau raws li cov kev cai sintering ntawm tag nrho cov mainstream zirconia thiab siab -lub zog iav ceramics, thiab yog sib xws nrog yuav luag tag nrho cov hom ntawm ceramic blocks ntawm lub lag luam (xws li Amann Girrbach, Ivoclar, Aidite, 3M, thiab lwm yam).











Cim npe nrov: Zirconia Fast Dental Sintering Rauv Rau Dental Lab, Tuam Tshoj, lwm tus neeg, manufacturers, hoobkas, customized
